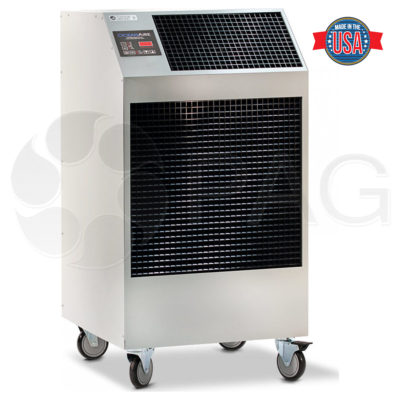

OceanAire OWC6032 – 60,100 BTU/h – 5 ton water-cooled – 208-230V/3Ph

Designed for areas where ventilation is not available

The OceanAire OWC6032 is designed to target cool air to specific areas through a grill located on the upper front of the unit while rejecting heat into the waster water. This model is ideal for enclosed rooms or small areas without ventilation because water-cooled air conditioners do not require exhaust ducting, Water-cooled spot coolers are more efficient, cost less to run, and require less maintenance.

Housed in a gray polyester powder-coated, 18-gauge sheet metal cabinet, it uses 208-230V/3Ph.  A dedicated circuit and time-delay fuses/circuit breakers are recommended.

Set the thermostat at the “start” and “stop” temperatures you want and the machine will do the rest.

Accessories and factory installed options are available for OWC units for improved performance and versatility.  These include an exhaust duct kit, nozzle kits, and more.

Standard features include:

• Amps 16.5
• Total watts 5000
• In rush amps 149
• Plug type l15-30p
• Eer 12.0
• Compressor scroll
• Compressor hp 5
• Compressor lra 137
• Evap cfm – high 1950
• Evap motor hp 1
• Condenser water flow
• At 60°f water in 3.8 gpm
• At 85°f water in 15 gpm
• Water line connections
• Water in 5/8 mf
• Water out 5/8 mf
• Drain 3/8 mf
• Condensate removal pump automatic
• 20’ vertical lift
• Refrigerant charge 52 oz r-410a
• Height 51-1/2 in
• Width 27 in
• Depth 29 in
• Net weight 375 lb

Cooling Ambient Operating range is 65º TO 105º

Not Approved for Outdoor Use

This machine is also available in 460V/3Ph (OWC6034)
