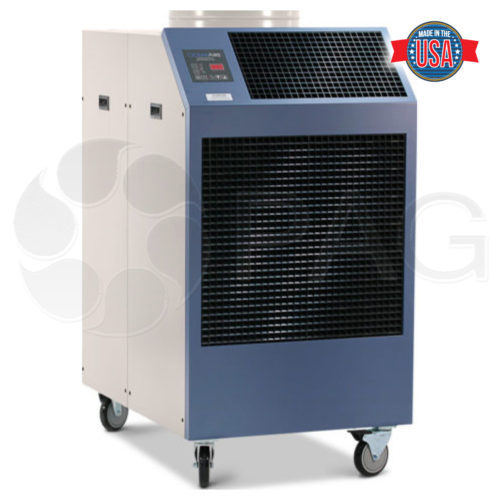

OceanAire 2OACH6032 – 60,100 BTU/h (cool) /53,500 BTU/h (heat) 208-230V/3Ph

Portable Air-Cooled Heat Pumps

The 2OACH3634 portable air-cooled heat pump is designed for permanent or temporary spot cooling or heating applications.

Whether you’re up against the coldest winter or hottest summer, this American-made unit will deliver year after year.  It targets cooled or heated air to specific areas or objects through a supply grill located on the upper front of the unit while discharging exhaust air from the top of the unit.

The unit is encased in a blue and gray polyester powder-coated 18-gauge sheet metal cabinet. The solid-state electronic controller provides a range of options for temperature and airflow, to deliver the desired level of comfort when cooling or heating.

A condensate pump comes standard with this unit.

Accessories are available including an optional condensate pump, nozzles, and flexible duct exhaust kits.

Dedicated circuit and time-delay fuses/circuit breakers are recommended.

Specifications are subject to change without notice.

• Amps: 20.4
• Voltage: 208-230V/3Ph
• Solid-state electronic controller
• Large LED display
• Automatic mode changeover
• 6-speed fan control
• Swivel casters (Front locking)
• 10-foot power cord LCDI
• Washable electrostatic air filter
• Manual reset high-pressure safety switch
• Condensate pump
• Condensate alert
• High-pressure safety switch
• Three-phase power indicator light
• UL Listed (U.S.A. and Canada)
• Made in the U.S.A.
• Weight 485 lbs.
• Dimensions: 51 ¾” H x 27 ½” W × 39 ½” D

Cooling Ambient Operating Range: 65ºF to 105ºF

Heating Ambient Operating Range: 40ºF to 85ºF

Not Approved for Outdoor Use

1 and 1.5-ton 115V, 3-ton 208-230V/1Ph or 3Ph, and 5-ton 208-230V/1Ph or 3Ph, 460V/3Ph models are also available.
