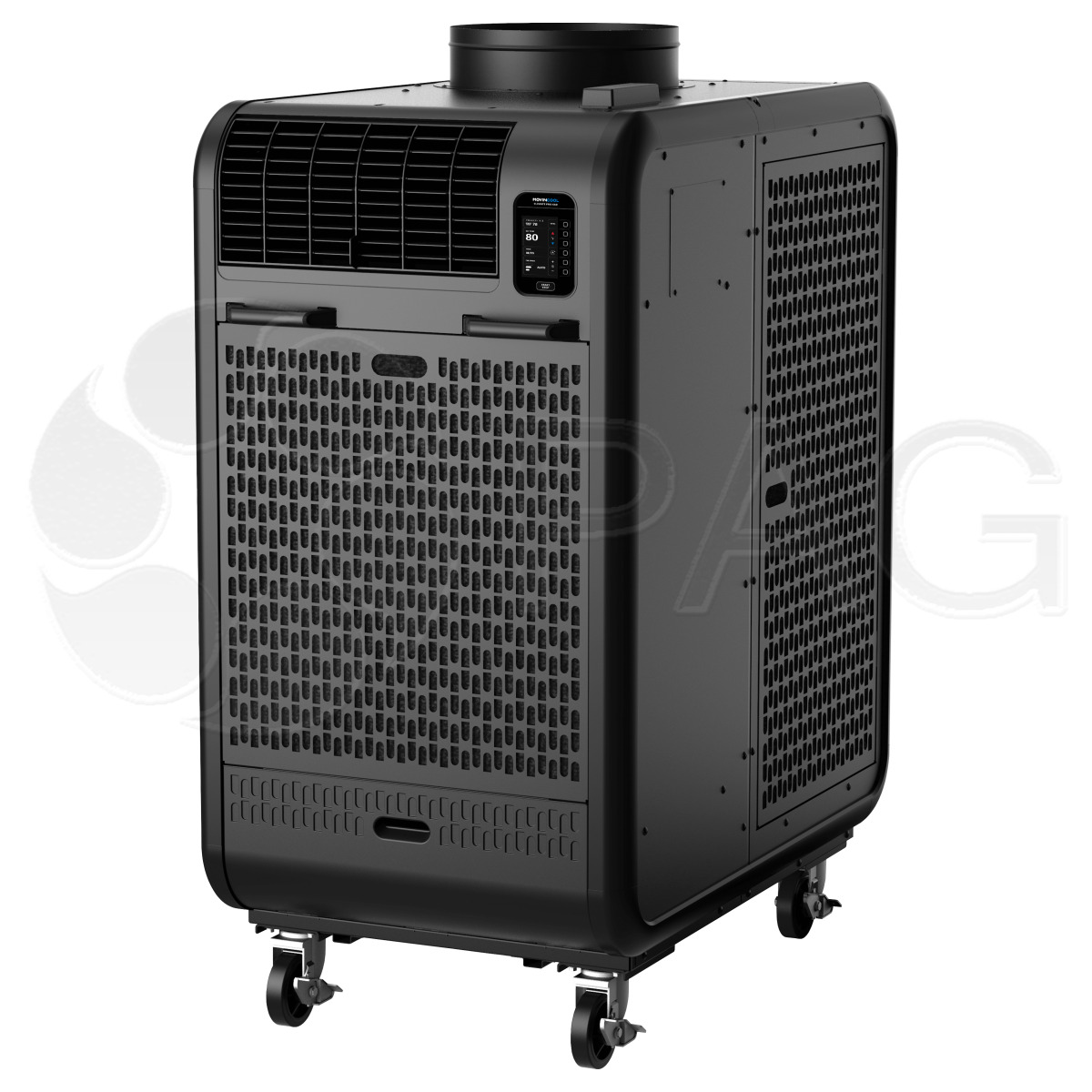

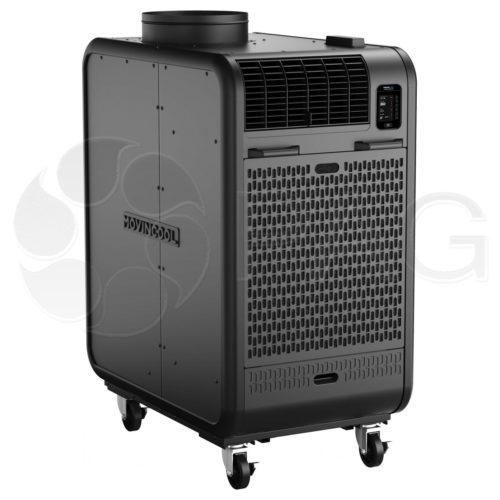

Description
Accessories Diagram
Accessories are not included with the unit.
# |
Part Num |
Item |
Description |
|
| 1 | 481170-0470 | Supply Air Flange Kit, 8-in dia. | 8-in diameter white metal flange with wire clamp and mounting screws. Use with Self-Supported Duct. | |
| 1 | 481170-0460 | Supply Air Flange Kit, 6-in dia. | 6-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts. | |
| 1A | 481170-0490 | Supply Air Flange Kit, 6-in dia., Quick Connect type | 6-in diameter white metal flange with wire clamp and mounting screws. Quick Connect Type. Use with Nozzle Kit. | |
| 2 | 484209-0490 | Nozzle Kit, 6-in dia. | 6-in diameter plastic nozzle that extends up to 2 feet in length. Quick connect type. Includes trim ring. | |
| 4 | LAY45810-0080 | Self-Supported Duct, 8-in dia. | 8-in adjustable diameter, white plastic duct that extends from 6.5 to 10 feet in length. | |
| 4A | LAY45810-0030 | Flexible Air Duct, 8-in dia. | 8-in diameter wire-reinforced, accordion-style duct in 25-ft lengths. Includes clamp. | |
| 5 | 481851-0210 | Trim Ring, 6-in dia. | 6-in diameter black plastic ring mounts as end caps for extension duct. | |
| 6 | 481769-0300 | Duct Adapter Kit | Two-piece metal frame converts airflow from louvers to 8-in self-supported ducts or flexible air ducts. (Ducts and flange sold separately) | |
| 6A | 481769-0290 | Nozzle Adapter Kit, 6-in dia. | Adapter converts airflow from louvers to nozzles or air ducts. Up to four nozzles or air ducts. | |
| 8 | LAY45820-0010 | Flexible Air Duct, 16-in dia. (not shown) | 16-in diameter wire-reinforced, accordion-style duct in 25-ft lengths. Includes clamp. | |
| 9 | 484490-1040 | Celling Tile Kit, 16-in hole, metal | 24-in x 24-in sheet metal tile with 16-in hole and built-in flange for exhaust air flexible duct kit | |
| 10 | 484350-1240 | Outdoor Air Plenum | White plastic plenum for return air to condenser. Hinged for filter cleaning. | |
| 14 | 484460-0010 | Condensate Float (not shown) | Controls water level in condensate tanks. (For K60/K63 only) | |
| 14 | 484730-0020 | Condensate Tank | Drain tank storage for condensation. Requires condensate float (sold separately). | |
| 15 | 484350-1210 | Indoor Air Plenum | White plastic plenum for return air to evaporator. |
Specifications
Electronic Features |
|
| Control Panel | Programmable |
Cooling Capacity |
|
| Rating Conditions: 95?F @ 60% RH | 60,000 Btu/h |
Electrical Characteristics |
|
| Voltage Requirement (60 Hz) | 1 Phase, 208/230 V |
| Total Power Consumption | 6.6 kW |
| Current Consumption | 31.5 amps* |
| Recommended Fuse Size | 50 amps |
| NEMA Plug Configuration | 6-50 |
| Min. – Max. Voltage | 198 – 253 V |
Fans |
|
| Motor Output | 0.56 kW Evaporator 0.30 kW x 2 Condensers |
Evaporator |
|
| Fan Type | Centrifugal |
| Max. Air Flow – High/Mid/Low | 1770/1710/1650 CFM |
| Max External Static Pressure | 0.9 IWG |
Condenser |
|
| Fan Type | Centrifugal |
| Max. Air Flow – High/Mid/Low | 2400 CFM |
| Max. External Static Pressure | 0.85 IWG |
Compressor |
|
| Type | Hermetic Rotary |
| Output | 3.45 kW |
Refrigerant |
|
| Type | R-410A |
Dimensions |
|
| W x D x H | 31 x 55 x 64 in |
Weight |
|
| Net / Shipping | 582 / 666 lb |
Power Cord |
|
| Gauge | 6 AWG (3-core) |
| Length | 6 ft |
Condensate Tank |
|
| Auto Pump | Included |
Operating Conditions |
|
| Min. – Max. @ 50% RH | 65? – 105?F |
Max. Duct Length |
|
| Per Cold Duct Hose | 40 ft |
| Hot Duct Hose | 100 ft |
Max. Sound Level |
|
| With Condenser Duct – High/Mid/Low | 69/68/67 dB(A) |
| Without Condenser Duct – High/Mid/Low | 71/70/69 dB(A) |
