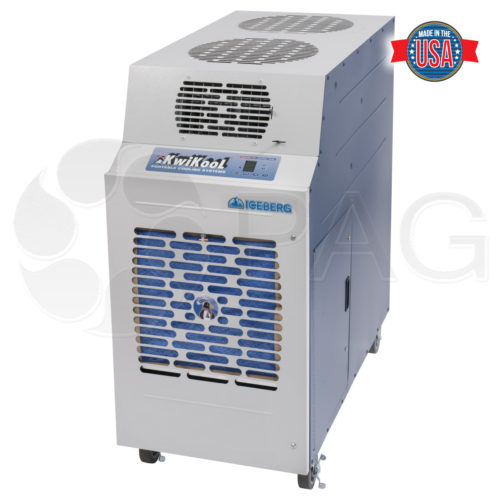

KwiKool KIB2421-2 – 23,500 BTU/h – 2 ton air-cooled – 208v/1Phase

Auto speed automatically sets fan speed based on heat load demand

The KwiKool KIB2421-2 (replaces the KIB2421) is the smallest unit possible in size and capacity in The Iceberg Series, KwiKool’s Flagship Line of portables.

This unique unit has the largest cooling capacity of any portable using a 115-volt circuit for both primary and backup air conditioning. With its full-featured design, high sensible cooling, and balanced air system, the KwiKool KIB2421-2 is the perfect solution for cooling small server and IDF rooms.

The Iceberg Series is quick and easy with its “plug and play” technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features (most of which are not even available in other brands), the Iceberg Series outperforms, outlasts, and out features other portables and all at a price that is comparable to the no-frills products that are available.

All Iceberg Series units come standard with our exclusive I/O Integral Condenser Dual Ducting that provides isolated and balanced air pressure within the space for maximum cooling efficiency.

The KIB2421-2 runs on a standard 230-volt/20-amp circuit with an automatic restart after a power failure. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use. Manufactured in the United States of America.

• Compact yet Powerful
• Wide Operating range of 60ºF-110ºF
• ETL and CETL listed to UL and CSA standards
• Includes KwiKool’s Exclusive I/O Integral Condenser where both inlet and outlets are ductable, without costly and bulky add-on kits
• Multi-function microprocessor control with a large, easy-to-read LCD display
• Easy-touch control pads make changing system settings a snap
• Self-Diagnostics that include audible alarm and LCD visual display readout for system fault conditions
• Input/Output Alarm Contacts for connection to building systems
• Internal high lift condensate pumps and a 5- gallon reservoir tank for total condensate flexibility
• Condensate overflow protection
• Three fan speeds
• Auto speed- automatically sets fan speed based on heat load demand (not available on single speed models)
• Thermostatic Expansion Valve
• Heavy duty compressor with automatic restart and short cycle protection
• Motors and compressors have overload protection
• High-pressure safety with manual reset
• Low-pressure safety with automatic reset
• NEMA 6-20
• Weight 295

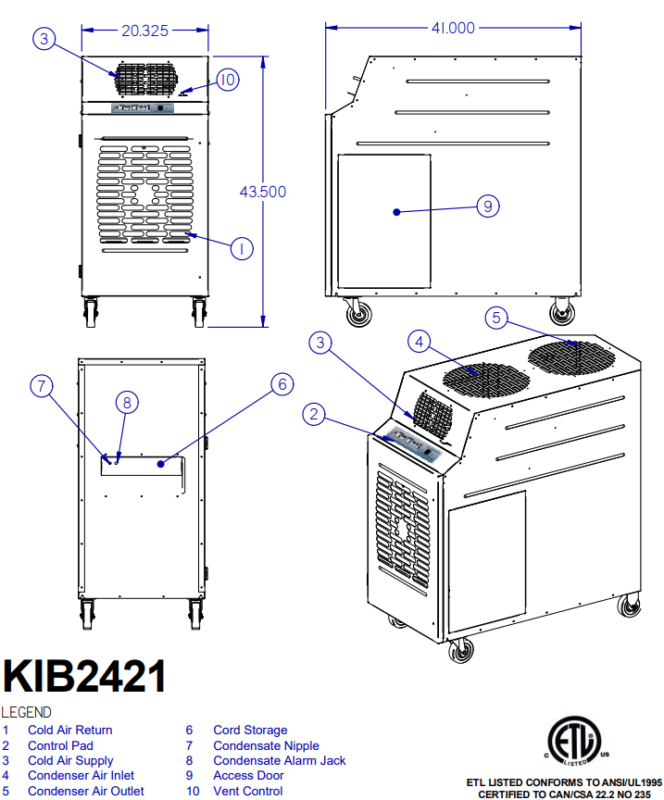

• 20.375″L x 41.125″W x 42.75″H

Specification Sheet Operation Manual
