Sale!

KwiKool KIB1811-2 – 17,700 BTU/h – 1.5 ton air-cooled – 115v/1Phase

Original price was: $5,295.00.Current price is: $3,971.25.

Contact Our Expert Team

Higher cooling capacity with the same small footprint as the KIB1811

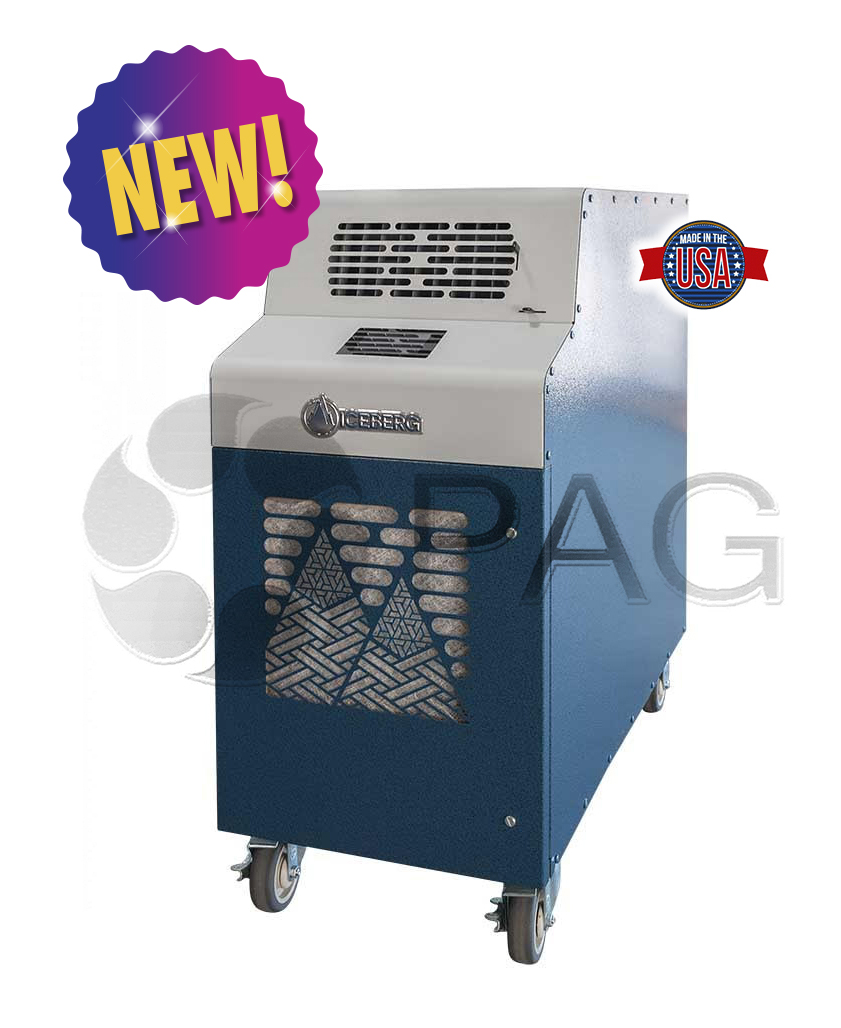

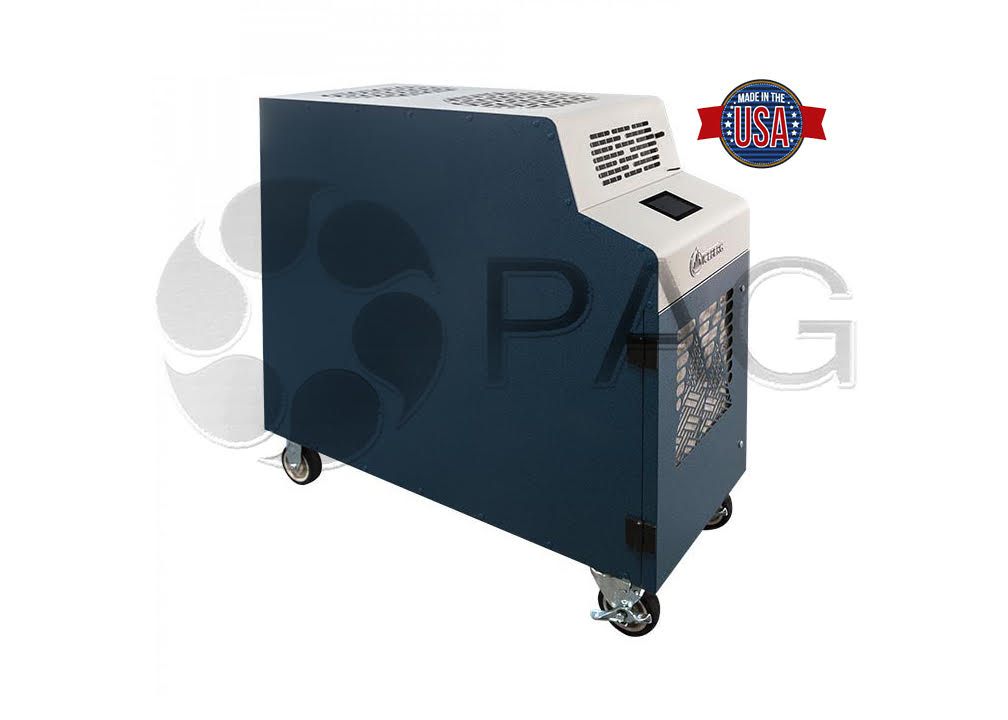

The Model KIB1811-2 (replaces the KIB1811) is one of the two smallest units in size in The Iceberg Series, KwiKool’s Flagship Line of portables. With its full-featured design, high sensible cooling, and balanced air system, the KIB1811-2 is the perfect solution for cooling small server and IDF rooms. The Iceberg Series is quick and easy with its “plug and play” technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features (most of which are not even available in other brands), the Iceberg Series outperforms, outlasts, and out features other portables and all at a price that is comparable to the no-frills products that are available.

Specifications

  • MADE IN USA
  • Compact yet Powerful
  • Runs on 115V 15 or 20 amp circuit
  • Wide Operating range of 60F-110
  • Cold Air Supply CFM 625
  • NEMA 5-20
  • Weight 205
  • 16.312″L x 36″W x 37.562″H

Specification Sheet Operation Manual Warranty

Categories: , SKU: PAG-KIB1811-2-011921
Brands:

Description

Accessories Diagram

#

Part Name

Description
1 KDC-12 Cold Air Chute Kit
2 CK-12 Ceiling Tile Kit (includes two each of parts 3, 4 and 5)
3 8ft x 12in duct 8ft section of 12in diameter exhaust duct
4 Ceiling Tile 24in x 24in dual flange ceiling tile
5 DCR-12 12in diameter intake/exhaust Flange

Accessories are not included with the unit.

Specifications

COOLING CAPACITY
 BTU/hr @ 95F at 60% RH 17,700 (1.5-Ton)
COMPRESSOR DATA
 Compressor Type Hermetic Rotary
Operating Temperatures 60-110 F 50%RH
Refrigerant 410A
FAN DATA
Evaporator
 Fan Type (Centrifugal) Direct Drive
Air Flow (CFM) 625/3 Speed
Supply Air Device Adjustable Vent
Supply Air Chute Kit (optional) 2 – 5″ Dia. x 16″ Length
Condenser
 I/O Integral Condenser Balanced Air Flow
Fan Type (Centrifugal) Direct Drive
Air Flow (CFM) 950
Condenser Duct Specs (optional) 2 – 12″ Dia. x 8′ Length
Condenser Duct Max. Length 25′
ELECTRICAL DATA
 Power Supply (Volts) 115 Single Phase
Current Consumption (Amps) 15.4
Power Consumption (kW) 1.6
Maximum Circuit Breaker (Amps) 30
Recommended Breaker Size 20
Minimum Circuit Ampacity(Amps) 22.175
Min./Max. Voltage 105-125
Power Cord Gauge/Length 12/6′
Plug Configuration NEMA 5-20
DIMENSIONAL DATA
 Width x Depth x Height (Inches) 16.325″ x 36″ x 37.25″
Weight (Lbs.) 205
Shipping Weight (Lbs.) 255
Ceiling Kit Weight (Lbs.) 38
Shipping Weight w/ Ceiling Kit 293
SAFETY DEVICE DATA
 Compressor Overload Internal
Fan Motor Overload Automatic Internal
Evaporator Freeze Protection Hot Gas Bypass
High Pressure Switch Manual
Low Pressure Switch Automatic
Compressor Short Cycle Yes
Automatic Restart Yes
Thermostat Type Microprocessor/Digital
Condensate Pump Overflow Yes
Condensate Tank Overflow Yes
