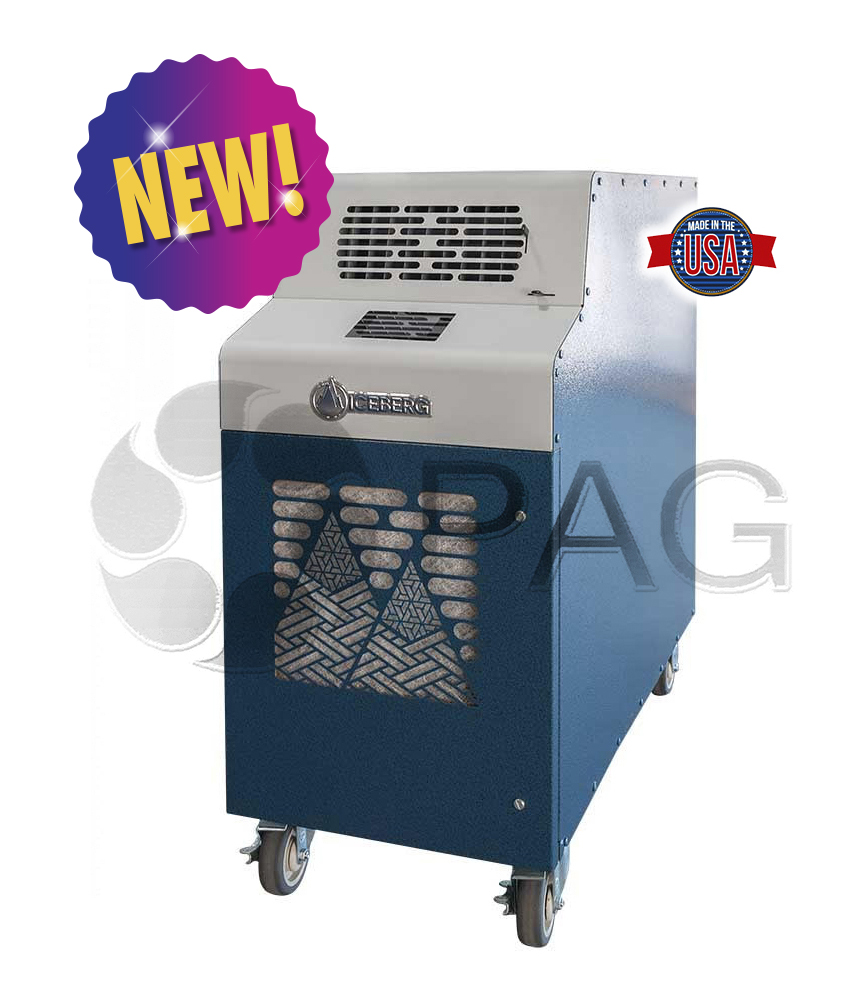

KwiKool KIB1411-2 – 13,800 BTU/h – 1.1 ton air-cooled 115v/1Phase

Original price was: $4,595.00.Current price is: $3,446.25.

Contact Our Expert Team

The KIB1411-2 is the smallest capacity unit with the smallest footprint – perfect for any space

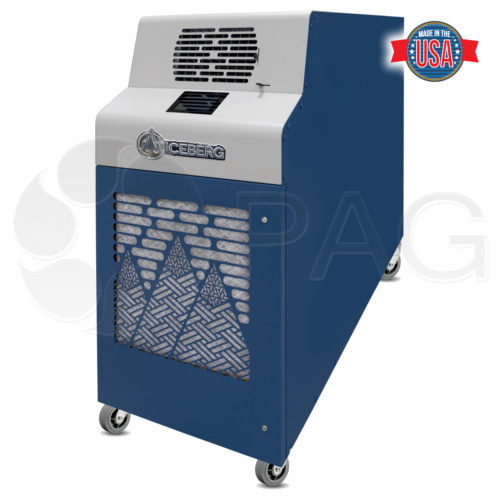

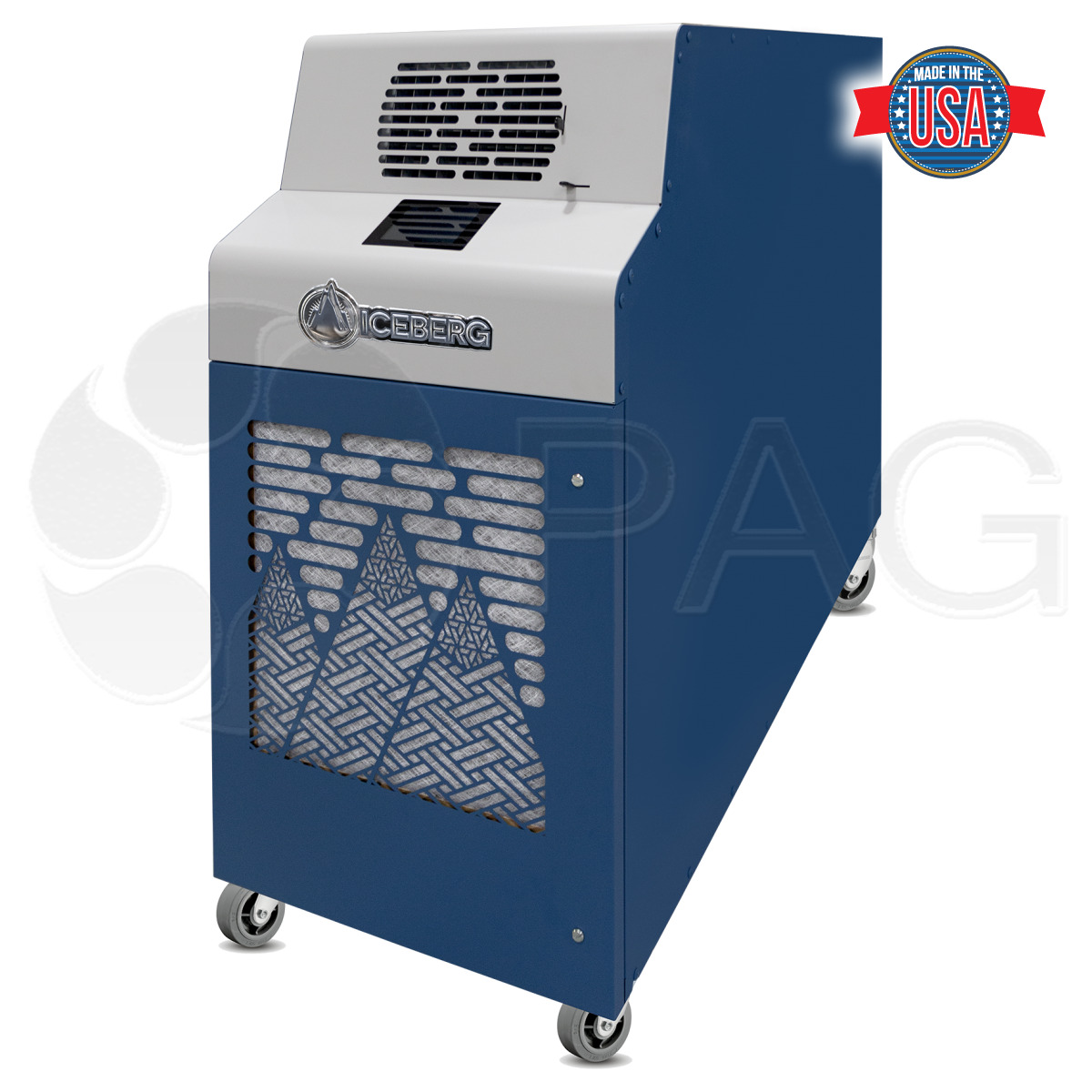

The KwiKool KIB1411-2 (the KIB1411-2 replaces the KIB1411) is the smallest unit in size and capacity in The Iceberg Series, KwiKool’s Flagship Line of portables.

With its full-featured design, high sensible cooling, and balanced air system, the KIB1411-2 is the perfect solution for cooling small server and IDF rooms.

The Iceberg Series is quick and easy with its “plug and play” technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features (most of which are not even available in other brands), the Iceberg Series out performs, outlasts, and out features other portables and all at a price that is comparable to the no-frills products that are available.

All Iceberg Series units come standard with our exclusive I/O Integral Condenser Dual Ducting that provides isolated and balanced air pressure within the space for maximum cooling efficiency.

The KIB1411-2 runs on a standard 115-volt/15 or 20-amp circuit with an automatic restart after a power failure. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use. Manufactured in the United States of America.

Specifications

  • MADE IN USA
  • Compact yet Powerful
  • Runs on 115V 15 or 20 amp circuit
  • Wide Operating range of 60F-110
  • Cold Air Supply CFM 460
  • NEMA 5-15
  • Weight 195
  • 16.312″L x 36″W x 37.562″H

Specification Sheet Operation Manual Warranty

CONTACT US for a Quote
Categories: , SKU: PAG-KIB1411-2-011921
Brands:

Description

Accessories Diagram

#

Part Name

Description

1 KDC-12 Cold Air Chute Kit
2 CK-12 Ceiling Tile Kit (includes two each of parts 3, 4 and 5)
3 8ft x 12in duct 8ft section of 12in diameter exhaust duct
4 Ceiling Tile 24in x 24in dual flange ceiling tile
5 DCR-12 12in diameter intake/exhaust Flange

Accessories are not included with the unit

Specifications

COOLING CAPACITY
BTU/hr @ 95F at 60% RH 13,800 (1.1-Ton)
COMPRESSOR DATA
Compressor Type Hermetic Rotary
Operating Temperatures 60-110 F 50%RH
Refrigerant 410A
FAN DATA
Evaporator
Fan Type (Centrifugal) Direct Drive
Air Flow (CFM) 460/3 Speed
Supply Air Device Adjustable Vent
Supply Air Chute Kit (optional) 2 – 5″ Dia. x 16″ Length
Condenser
I/O Integral Condenser Balanced Air Flow
Fan Type (Centrifugal) Direct Drive
Air Flow (CFM) 700
Condenser Duct Specs (optional) 2 – 12″ Dia. x 8′ Length
Condenser Duct Max. Length 25′
ELECTRICAL DATA
Power Supply (Volts) 115 Single Phase
Current Consumption (Amps) 12.8
Power Consumption (kW) 1.35
Maximum Circuit Breaker (Amps) 20
Recommended Breaker Size 15 or 20
Minimum Circuit Ampacity (Amps) 19.575
Min./Max. Voltage 105-125
Power Cord Gauge/Length 14/6′
Plug Configuration NEMA 5-15
DIMENSIONAL DATA
Width x Depth x Height (Inches) 16.325″ x 36″ x 37.25″
Weight (Lbs.) 195
Shipping Weight (Lbs.) 245
Ceiling Kit Weight (Lbs.) 38
Shipping Weight w/ Ceiling Kit 283
SAFETY DEVICE DATA
Compressor Overload Internal
Fan Motor Overload Automatic Internal
Evaporator Freeze Protection Hot Gas Bypass
High Pressure Switch Manual
Low Pressure Switch Automatic
Compressor Short Cycle Yes
Automatic Restart Yes
Thermostat Type Microprocessor/Digital
Condensate Pump Overflow Yes
Condensate Tank Overflow Yes
