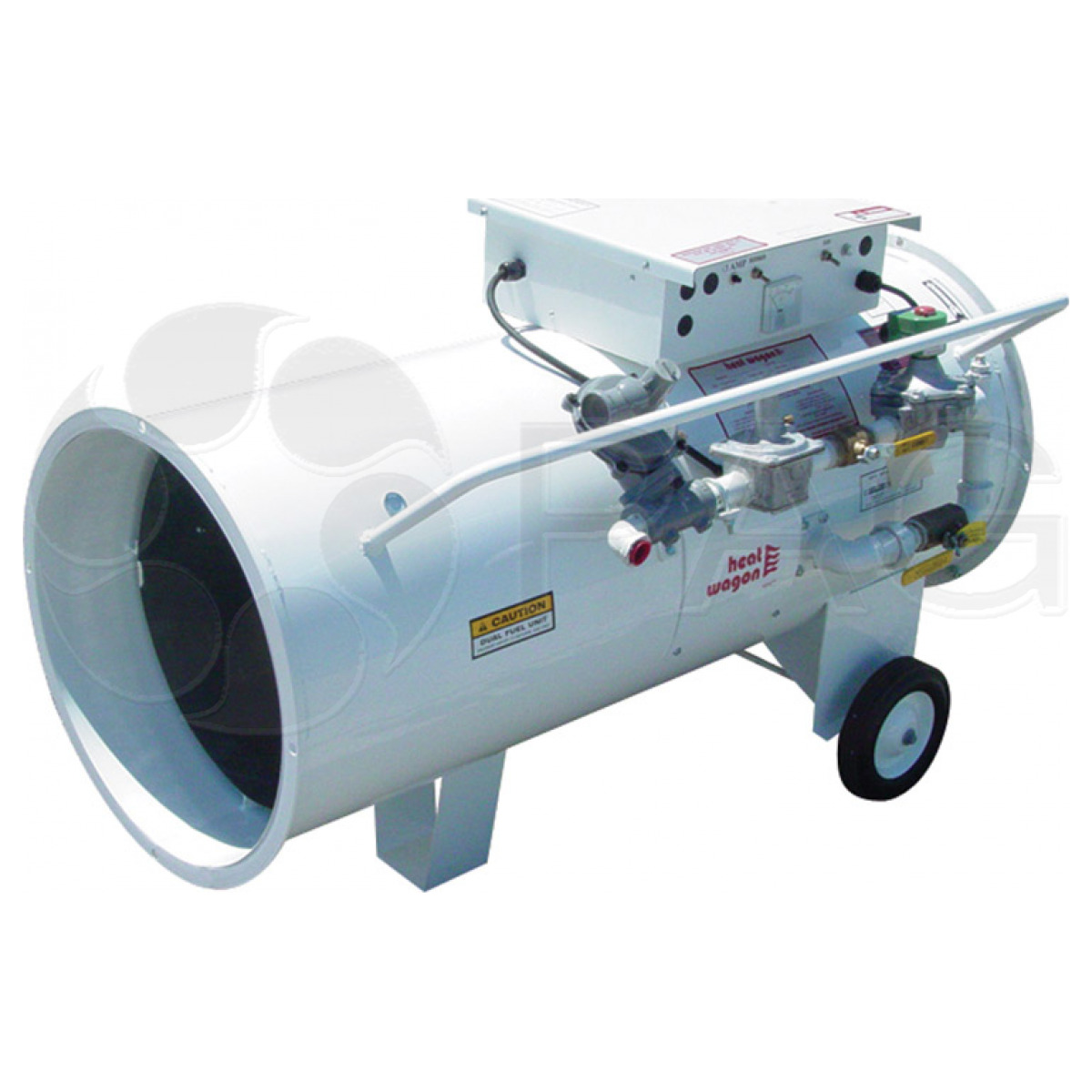

Heat Wagon 1800B – ductible duel fuel heater – 450,000 – 750,000 BTU/h

Features

• CSA approved
• Efficient motor reduces amp draw and is rated to run on standard 15 amp circuit
• New remote (50’ long) thermostat with Hi/Lo/Off control
• 12” wheels make for easy handling
• Relays pull in and hold tight down to 95V
• Ductable up to 50 ft.
• Upgraded heater control board
  • Starts heater with low voltage down to 95V
  • Potted control board minimizes moisture and vibration
• Diagnostic troubleshooting lights
• 1800BL model also comes powered with liquid propane

Specifications

• Input 750,000 – 450,000 BTU/Hr
• Fuel Vapor Propane/Natural Gas
• Gas Consumption 8.3 GPH Propane/750 CFH NG
• Gas Connection 3/4” FNPT
• Electrical 120 Volts 15 amp circuit
• Fan 4200 CFM 1 HP
• Thermostat 2 Stage Hi/Lo/Off w/50’Remote
• Temp Rise 385°F
• Actual Dimensions 31.5”H x 48.5”L x 26”W
• Weight 200 lbs.

Made in the USA.

Specification Sheet Operation/Service Manual

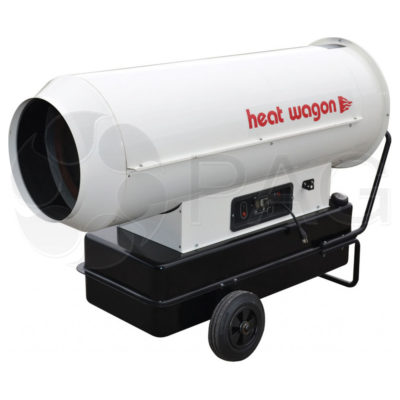

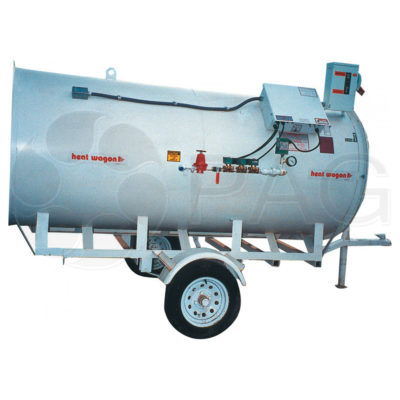

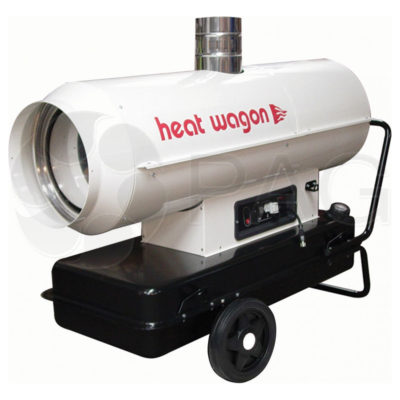

See our full line of Heat Wagon direct-fired products – there’s one just right for your application.
