Model T-25 — 75,000 BTU/h — 5-ton Cooling Tower
$2,150.00

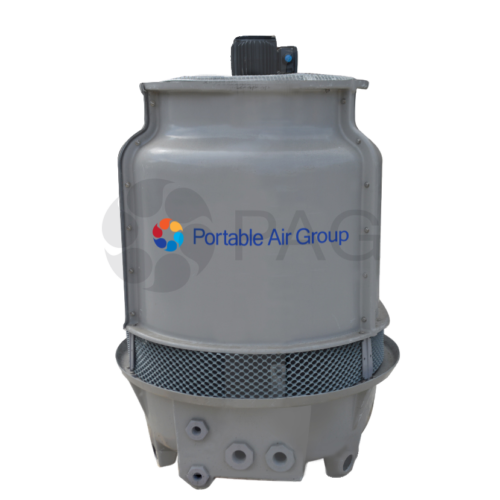

Cooling Tower Model T-25 — 75,000 BTU/h
Our compact cooling towers can be paired with portable air conditioning units to provide cooling in challenging conditions where recirculation of water is important for conservation and cost-effective operations. The cooling towers have a small footprint (3 ft. x 3 ft.). The operational weight is 229 lbs. These can easily be placed on a rooftop or elsewhere. Assembled in the USA.
Call for details and options: 1-866-948-5300
Model T-25 Features
- Fan Motor: 1/6 HP, 110/220V, 1PH, 60Hz (Electrical hookups are inside the junction box located on fan motor)
- Cooling Capacity: 75,000 BTU/h
- Air Volume: 2,100 CFM
- Water Inlet: 1.5 inches
- Water Outlet: 1.5 inches
- Tower Diameter: 33.5 inches
- Tower Height: 52 inches
- Operating Weight: 229 lbs.
- Dry Weight: 86 lbs.
- Nozzle Type: Round, Female (NPT) Threaded, Nylon
- Shipping Weight: 120 lbs.
- Shipping Dimensions: 36″ x 36″ x 63″
