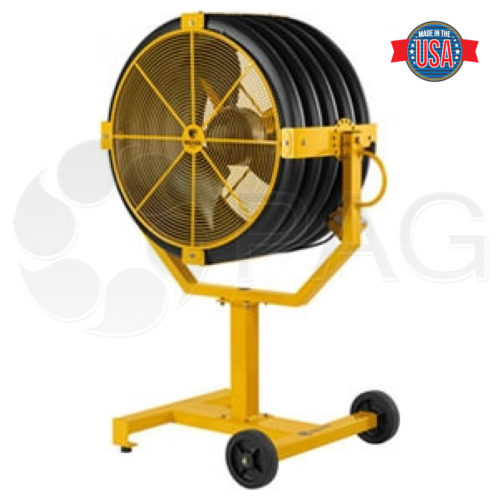

Big Ass Fans Yellow Jacket Portable Fan F-YJ1-0310/100-125V

Portable 2.5-ft. diameter directional fan for indoor and outdoor use

When you need maximum airflow on the move

The ultra-durable 2.5-ft. diameter 2400 with lockable positioning for direct airflow where you need it most. Features a highly efficient IPX5-rated motor with variable-speed control, heavy-gauge steel frame, and OSHA-compliant steel spiral guards. Plus, it’s easy to clean. The standard color is yellow…but there are eight other colors as well as custom colors options.

Made in the USA.

Specifications

• Weight: 105 lb.
• Input power and required breaker: 100–125 VAC, 50/60 Hz, 1 Φ, 20 A, 7.6-9.8 A, 1,317 RPM max speed
• Power: 20/600 watts
• dB = 80.2 max
• Operating temperature: -40°F to 122°F (-40°C to 50°C)
• W44″ x D21″ x H42″
• Provides up to 120 feet of coverage
• Power Supply: 10-ft. (3 m) cord fits standard power outlets
• 10 speed settings
• 0.05 hp motor
• 360° rotation with lockable positioning and available oscillator
• High density polyethylene housing with vibration dampening
• Standard yoke mount (weight: 37 lb.)
• Option items:
  • Portable 18- or 36-inch steel pedestal
  • Wall column mounting kit
  • Overhead mounting kit
  • Swivel kit
  • Oscillator kit
  • 8 classic colors or custom colors are available

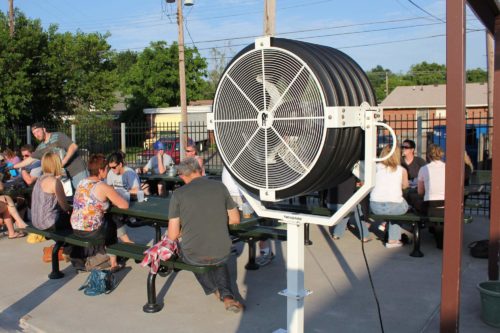

• Indoor and outdoor use
• ETL-certified

See the Yellow Jacket F-YJ1-0310-200-240V unit here

See our full line of Big Ass Fans

Technical Specifications Owner’s/Maintenance Manual
